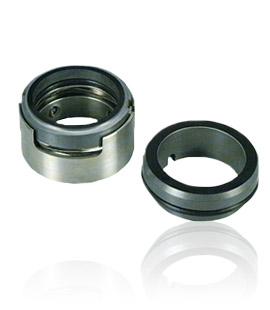

TECHNICAL FEATURES
- SINGLE SEAL, UNBALANCED
- BI-DIRECTIONAL
- BI-Directional
- TO DIN 24960
- DYNAMIC O-RING
- NON-WELDED CONTINUOUS WAVE SPRING
MATERIALS
- ROTARY FACES: SILICON CARBIDE, TUNGSTEN CARBIDE, CARBON GRAPHITE
- STATIONARY SEATS: SILICON CARBIDE, ALUMINA CERAMIC, CARBON GRAPHITE
- O-RINGS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
- METAL PARTS: 304 STANDARD OR 316 STAINLESS STEEL OPTION AVAILABLE
OPERATING LIMITS

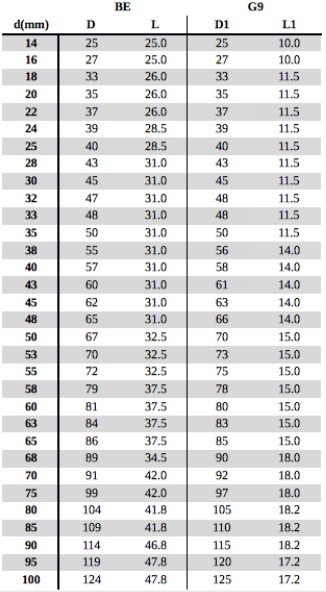

DIMENSIONS = 14MM – 100MM
PRESSURE = 220 PSI / 15 BAR
TEMPURATURE = 160°C / 320°F
VELOCITY = 20 M/S – 4000 FPM
  |
