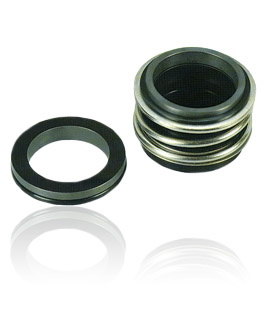

TECHNICAL FEATURES
- UNBALANCED
- SINGLE SEAL
- SINGLE SPRING
- ELASTOMER BELLOWS
MATERIALS
- ROTARY FACES: SILICON CARBIDE, TUNGSTEN CARBIDE, CARBON GRAPHITE
- STATIONARY SEATS: SILICON CARBIDE, ALUMINA CERAMIC, CARBON GRAPHITE
- BELLOWS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
- METAL PARTS: 304 STANDARD OR 316 STAINLESS STEEL OPTION AVAILABLE
OPERATING LIMITS

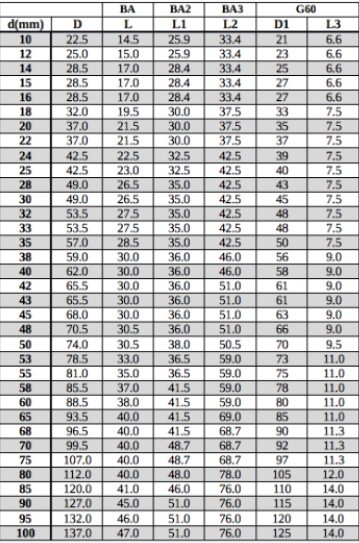

DIMENSIONS = 10MM-100MM
PRESSURE = 170 PSI / 12 BAR
TEMPURATURE = 140°C / 285°F
VELOCITY = 10 M/S – 2000 FPM
  |
