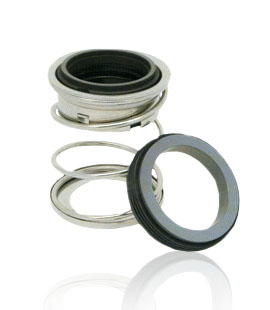

TECHNICAL FEATURES
- UNBALANCED
- SINGLE SPRING – NON-CLOGGING
- BI-DIRECTIONAL
- ELASTOMER BELLOWS
- SET SCREW COLLAR AVAILABLE
MATERIALS
- ROTARY FACES: CARBON GRAPHITE, SILICON CARBIDE, TUNGSTEN CARBIDE
- STATIONARY SEATS: CERAMIC, SILICON CARBIDE, TUNGSTEN CARBIDE, STAINLESS STELL
- BELLOWS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
- METAL PARTS: 304 STANDARD OR 316 STAINLESS STEEL OPTION AVAILABLE
OPERATING LIMITS

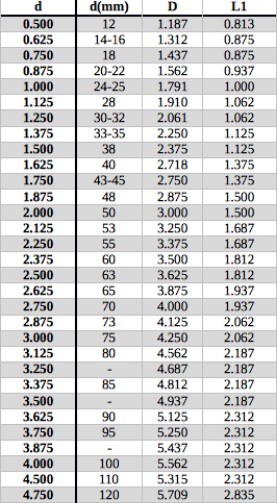

DIMENSIONS = 0.500” – 4.750”
MAX PRESSURE = 150 PSI / 10 BAR
MAX TEMPURATURE = 160°C / 320°F
VELOCITY = 20 M/S / 4000 FPM
  |
