TECHNICAL FEATURES
- UNBALANCED
- MULTI SPRING
- BI-DIRECTIONAL
- DYNAMIC O-RING
MATERIALS
- ROTARY FACES: CARBON GRAPHITE, SILICON CARBIDE, TUNGSTEN CARBIDE
- STATIONARY SEATS: CERAMIC, SILICON CARBIDE, TUNGSTEN CARBIDE
- O-RINGS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
- METAL PARTS: 316 STAINLESS STEEL
- SPRINGS: HAST-C
OPERATING LIMITS

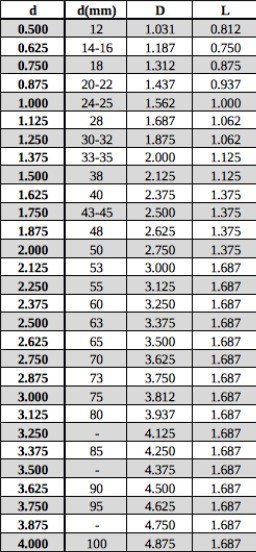

DIMENSIONS = 0.500” – 4.000”
MAX PRESSURE = 150 PSI / 10 BAR
MAX TEMPURATURE = 160°C / 320°F
VELOCITY = 22.5 M/S – 4500 FPM
  |
