TECHNICAL FEATURES
- BALANCED
- MULTI SPRING
- BI-DIRECTIONAL
- DYNAMIC O-RING
<DIV class=dividerReplacement></DIV>
MATERIALS
- ROTARY FACES: CARBON GRAFITE, SILICON CARBIDE, TUNGSTEN CARBIDE
- STATIONARY SEATS: CERAMIC, SILICON CARBIDE, TUNGSTEN CARBIDE
- O-RINGS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
- METAL PARTS: 316 STAINLESS STEEL
- SPRINGS: HAST-C
<DIV class=dividerReplacement style="MARGIN-BOTTOM: 0px"></DIV>
<DIV class=h2k>OPERATING LIMITS</DIV>

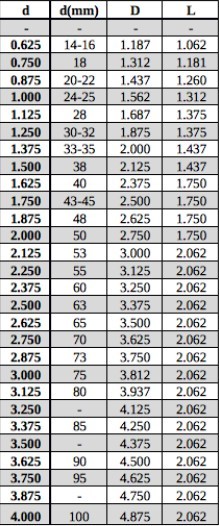

DIMENSIONS = 0.500” – 4.000”
MAX PRESSURE = 435 PSI / 30 BAR
TEMPURATURE = 160°C – 320°F
VELOCITY = 25 M/S – 4500 FPM
  |
