TECHNICAL FEATURES
- UNBALANCED
- SINGLE SPRING – NON-CLOGGING
- BI-DIRECTIONAL
- ELASTOMER BELLOWS
MATERIALS
- ROTARY FACES: CARBON GRAPHITE, SILICON CARBIDE, TUNGSTEN CARBIDE
- STATIONARY SEATS: CERAMIC, SILICON CARBIDE, TUNGSTEN CARBIDE, STAINLESS STEEL
- BELLOWS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
- METAL PARTS: 304 STANDARD OR 316 STAINLESS STEEL OPTION AVAILABLE
OPERATING LIMITS

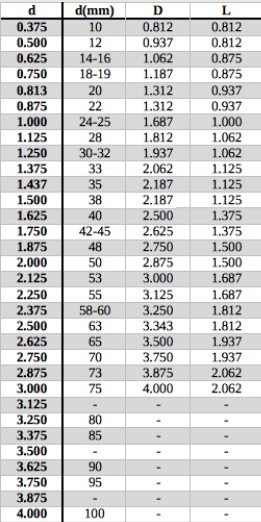

DIMENSIONS = 0.375” – 3.000”
MAX PRESSURE = 150 PSI / 10 BAR
MAX TEMPURATURE = 160°C / 320°F
VELOCITY = 13 M/S - 2600 FPM
  |
