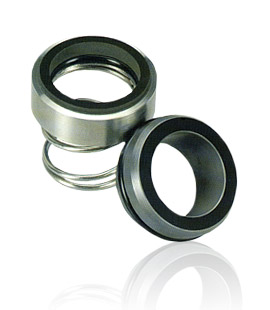

TECHNICAL FEATURES
- UNBALANCED
- SINGLE SEAL
- CONICAL SPRING
- DYNAMIC O-RING
- TO DIN 24960
MATERIALS
- ROTARY FACES: SILICON CARBIDE, TUNGSTEN CARBIDE, CARBON GRAPHITE
- STATIONARY SEATS: SILICON CARBIDE, ALUMINA CERAMIC, CARBON GRAPHITE
- BELLOWS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
- METAL PARTS: 304 STANDARD OR 316 STAINLESS STEEL OPTION AVAILABLE
OPERATING LIMITS

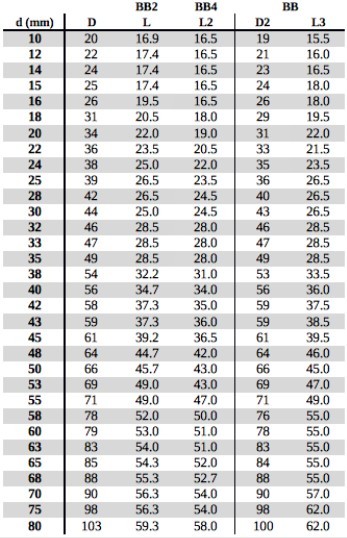

DIMENSIONS = 10MM – 80MM
PRESSURE = 145 PSI / 10 BAR
TEMPURATURE = 160°C / 320°F
VELOCITY = 10 M/S – 2000 FPM
  |
